Mastering Deck Board Installation: Our Journey to a Zippered Seam Deck

Embarking on a significant home improvement project like building a new deck is a journey filled with planning, hard work, and rewarding milestones. This post dives deep into the intricate process of installing deck boards, revealing our design choices, problem-solving strategies, and the sheer effort required to bring our dream deck to life. From selecting materials to implementing unique design features like a “zippered seam” pattern and “picture frame” border, we’re sharing every step of our DIY deck construction adventure, ensuring you gain valuable insights for your own outdoor oasis project.

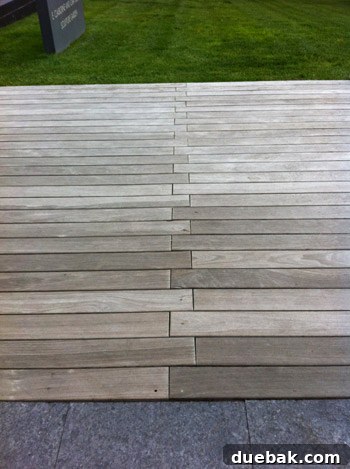

As you can glimpse from the photo above, we took a bold step in our deck design, committing to the visually striking “zippered seam” pattern. This distinctive layout, inspired by an architectural detail we admired at a local art museum, promised to elevate the aesthetic appeal of our outdoor space far beyond a conventional deck. But before delving into the meticulous planning required for such a design, let’s address some common questions that surfaced from our previous posts regarding deck construction.

Addressing Common Deck Installation Questions

Before diving deeper into the installation process, we received two pertinent questions from our readers that we believe are crucial for any DIY deck builder:

1. What informed your decision to use exposed screws instead of hidden fasteners?
2. Is it acceptable to lay decking boards with such minimal spacing?

Here are our comprehensive answers to these frequently asked questions:

1. The Choice for Exposed Screws: Classic Aesthetic and Practicality

Both Sherry and I grew up with decks that utilized traditional exposed screws, and we fondly remember their timeless beauty and remarkable longevity, often enduring for decades with minimal issues. This personal history heavily influenced our decision to embrace the classic look of exposed fasteners. Our approach involved meticulously lining up all screws to create a clean, uniform appearance, mirroring the refined look seen in our zippered seam inspiration. While subtle, the visible, perfectly aligned screws contribute to the deck’s overall polished finish, a significant upgrade from randomly drilled placements.

Beyond aesthetics, this choice was driven by practical considerations. We found it to be the most straightforward installation method, reducing complexity and potential headaches. Functionality was also a key factor; exposed screws offer unparalleled accessibility, allowing us to easily inspect and tighten any fasteners that might loosen over time due to wear and tear or environmental factors. This ease of maintenance ensures the long-term structural integrity and safety of our deck.

2. Deck Board Spacing with Pressure-Treated Wood

Regarding the close spacing of our deck boards, our decision was made in consultation with local engineers and designers, specifically for pressure-treated wood. It’s a well-known characteristic of pressure-treated lumber that it tends to contract and shrink over time as it dries and ages. Therefore, initially laying the boards relatively close together is not only permissible but often recommended. This method accounts for the inevitable shrinkage, ensuring that over time, natural gaps will form between the boards. These eventual gaps are crucial for proper water drainage, allowing rainwater to run off the deck surface efficiently, and also preventing debris like leaves from accumulating, which can lead to moisture retention and potential rot.

Rest assured, the initial close placement is a strategic move, anticipating the wood’s natural behavior to achieve optimal long-term performance and durability for our deck.

Crafting the Picture Frame Border: A Touch of Elegance

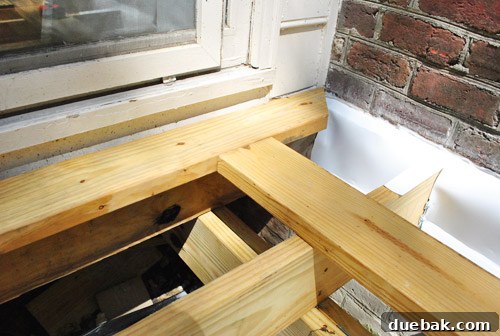

Even before tackling the complex zippered seam, our deck design called for another elegant feature: the “picture frame” border. This involves encircling the main deck area with a perimeter of boards that run parallel to the edges, meeting at precisely mitered corners. The interior space is then filled with the chosen decking pattern. Given that the majority of our decking would run parallel to the house’s brick siding, this meant adding frame boards at either end that aligned with our sliding door.

We believed this detail would provide a significantly more refined and polished look to the entire deck structure. However, this aesthetic enhancement required additional structural planning. It was imperative to ensure that all frame boards, and subsequently the interior deck boards, would be securely fastened to the underlying joists, adhering strictly to building codes for safety and longevity.

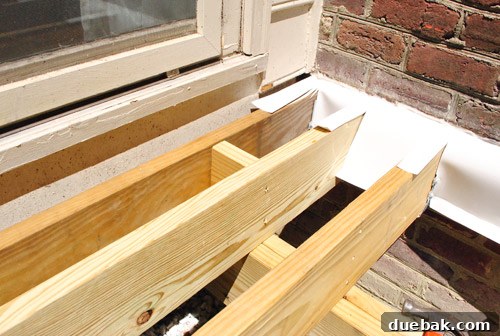

To guarantee that every board end rested firmly on a joist, I discovered the necessity of adding an extra joist in a specific area. The frame board, extending across the entire first joist, left the subsequent deck board unsupported at its end. This additional joist was a critical modification, ensuring full support and compliance with building codes designed for structural integrity over many years.

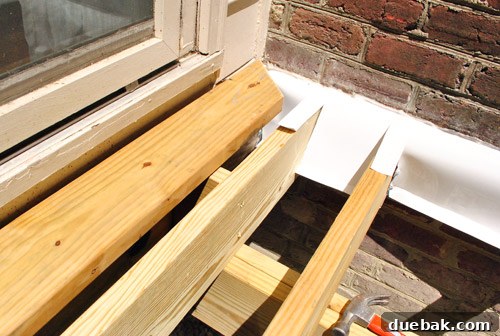

Furthermore, to provide even more robust support for the frame board, I strategically inserted a small block of spare 2×8 lumber between two existing joists. This created an additional contact point for the frame board, allowing it to be securely rested upon and screwed into, enhancing its stability and preventing any potential sagging or movement.

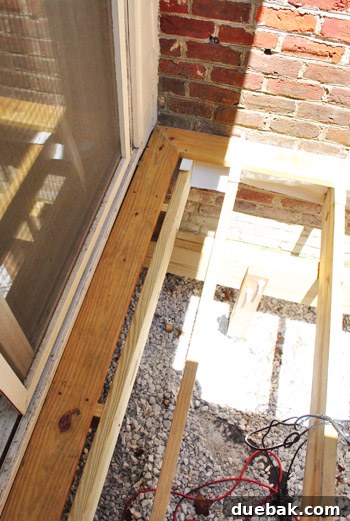

The progression of the picture frame border began to take shape, starting with these two sides. This initial phase allowed us to visualize the design and ensure the structural integrity before committing to the full frame. Working outward from this starting point ensured a methodical and precise installation.

Implementing the Zippered Seam Design

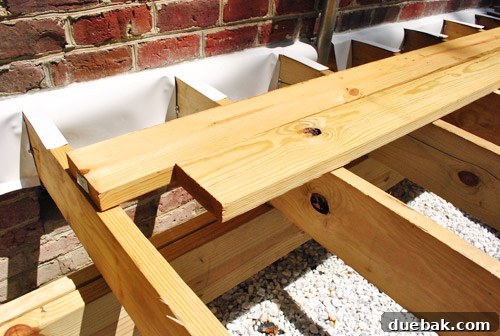

A distinctive “zippered pattern” was a cornerstone of our deck’s unique aesthetic. To achieve this staggered look, where boards would meet with an approximate five-inch offset at the seam, additional structural adjustments were necessary. Our standard joist spacing of 16 inches on center wasn’t conducive to this specific design requirement, necessitating the strategic addition of two new joists.

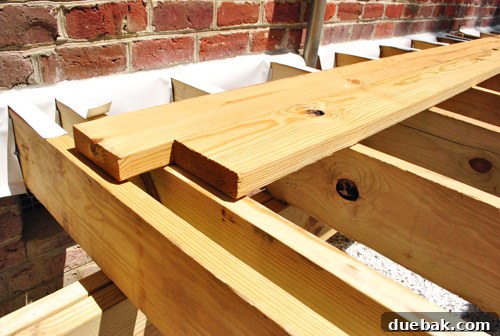

The insertion of these additional joists, one of which is shown below, seamlessly integrated into our existing framework, preparing the sub-structure for the patterned decking. While these could have been installed during the initial joist phase, we deliberately waited. This allowed Sherry and me the flexibility to precisely determine the ideal placement of the zippered seams across the deck’s length. With the deck’s considerable size, we planned for two such seams. Our chosen location strategically defines the future area of our outdoor dining table, ensuring the seams are visibly centered on either side of the table, much like the inspirational rendering we previously admired.

Beginning Deck Board Installation: Cutting, Laying, and Securing

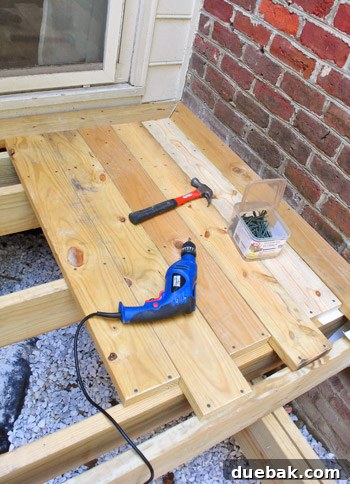

With all the necessary structural supports in place and meticulous planning complete, the moment arrived to commence the gratifying task of cutting, laying, and securing the deck boards. This phase marked a significant transition from groundwork to the visible progress of our outdoor living space. The satisfaction of seeing the deck surface begin to form was immense.

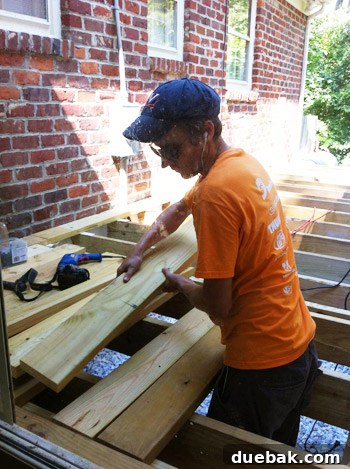

A notable aspect of our material choice was the use of pressure-treated 2×6 boards for the decking, rather than the more common 5/4″ material. This wasn’t a pre-meditated design decision but rather a recommendation from 84 Lumber during our quote process. However, we’re incredibly pleased with this choice. The thicker 2×6 boards contribute significantly to a more solid and substantial feel underfoot, enhancing the deck’s overall sense of quality and robustness. Furthermore, their increased thickness is expected to provide superior resistance to warping over time, ensuring a flatter, more durable deck surface for years to come.

Progressing with the First Section

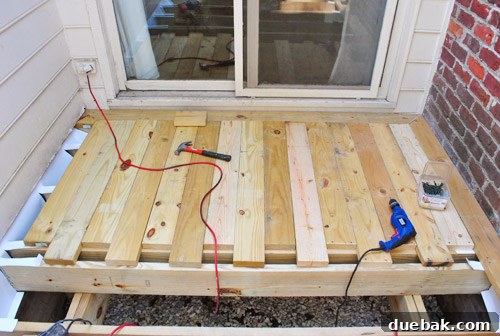

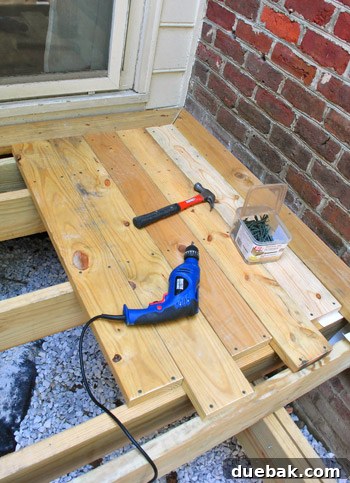

The initial section of the deck quickly took shape, with the zippered seam design clearly visible along one edge. At this stage, I strategically secured only the ends of the boards, knowing I would return later to complete the full screw pattern (two screws wherever a deck board meets a joist). A crucial aspect of this phase was ensuring compliance with local building codes, which mandate that all deck boards must span a minimum of four joists. Our design and installation meticulously adhered to this requirement, providing robust structural integrity.

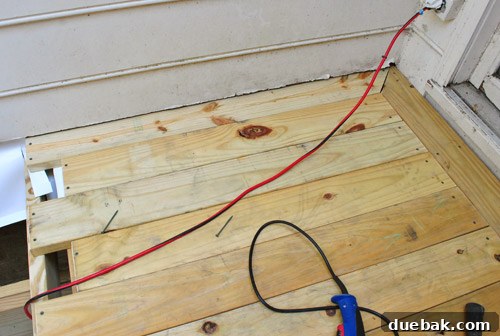

A fortunate alignment occurred when installing the very last board in this section. I had braced myself for the possibility of a frustratingly narrow gap, which might necessitate substituting a wider board or making a challenging custom cut. However, our 2×6 boards fit almost perfectly, requiring only a slight shave of about 1/4 inch off the edge of the adjacent frame board. Given that this edge would be concealed beneath the house siding, the precision of the cut was less critical, saving significant time and effort. (And yes, the siding still awaits its turn for sanding, caulking, power washing, and repainting – it’s definitely on the ever-growing project list!)

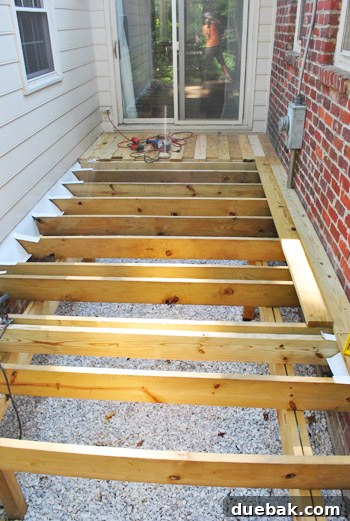

Completing this initial, albeit smaller, section of the deck provided a tremendous surge of excitement and motivation. It was a tangible representation of progress, transitioning from abstract plans to solid, functional structure. My focus then shifted to the middle section, which primarily involved installing full-length 10-foot boards, a more repetitive but equally crucial task.

Navigating Unforeseen Challenges in the Middle Section

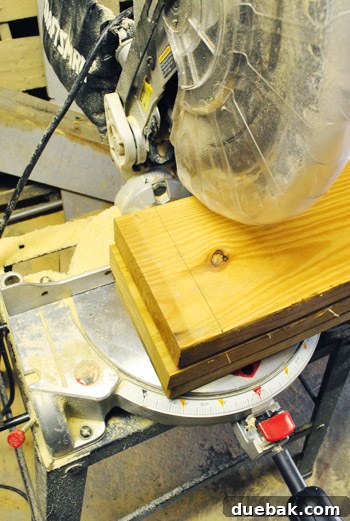

The installation of the middle section, while seemingly straightforward, presented an unexpected hiccup in our planning. It became apparent that the end joists intended to support these 10-foot boards were slightly less than ten feet apart – precisely 1 and 1/8 inches short. This meant that every single 10-foot board required a precise trim to ensure its ends would rest perfectly centered on a joist for secure fastening. While not the most catastrophic setback, this repetitive cutting, even though I could manage three boards at a time, undeniably consumed a significant amount of valuable installation time.

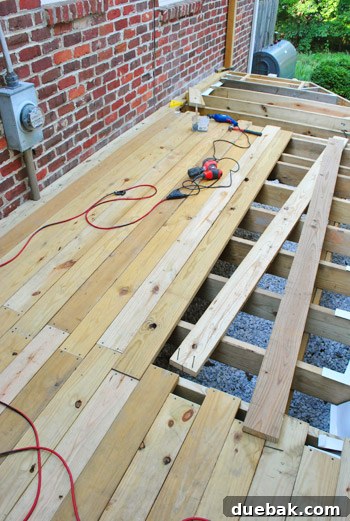

By the close of my first afternoon dedicated to laying decking, I had made substantial headway. The setting sun signaled an end to the day’s physical labor, prompting a well-deserved break for a late dinner with Sherry, who had been diligently managing blog responsibilities, wrangling our daughter Clara, and even squeezing in some last-minute book edits.

Reflections and Resilience: The End of Day One

Before retreating for the evening, I asked Sherry to capture an image that encapsulated my feelings after a full day of demanding work. The photograph perfectly conveyed a mix of profound accomplishment and utter exhaustion.

Primarily, there was an immense sense of achievement. After countless hours of planning and groundwork, I had finally constructed a solid, tangible platform. The structure was no longer merely a framework; it was beginning to truly feel like a deck, a testament to the progress made.

Secondly, a deep exhaustion had set in. Despite the day not being as relentlessly scorching as some previous workdays, it was still August in Virginia, meaning heat and pervasive humidity were constant companions throughout the strenuous labor. The physical toll was undeniable.

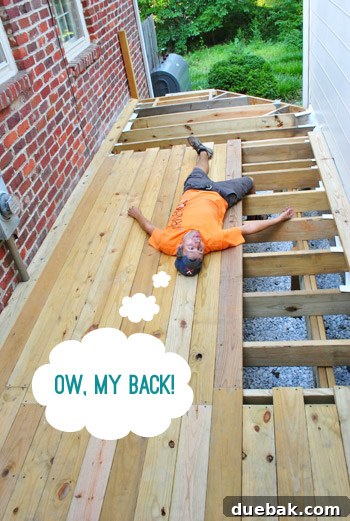

Last, but certainly not least, I was experiencing a fair bit of pain. Earlier in the day, while carrying a 2×6 board, my foot unfortunately missed a joist, and I fell through the framework. Thankfully, I managed to catch myself, my back connecting with one joist while my lower buttock hooked around another. The impact was significant and painful. Yet, in retrospect, I consider myself fortunate; a bruised lower buttock is far preferable to a more sensitive injury just inches away, which would undoubtedly have made for a prime “America’s Funniest Home Videos” submission. It was a peculiar blend of bad luck and good luck within that single, jarring fall.

Day Two: Refining Techniques and Conquering Warped Boards

After a much-needed meal and a good night’s sleep – not to mention milking my injury to Sherry a bit – I was back on the deck the following day, ready to pick up where I left off. This day also provided opportunities to capture more detailed process photos, like my method for setting screws.

Efficient Screw Setting: Hammer and Drill Technique

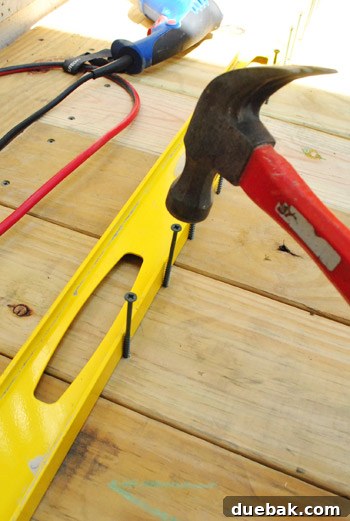

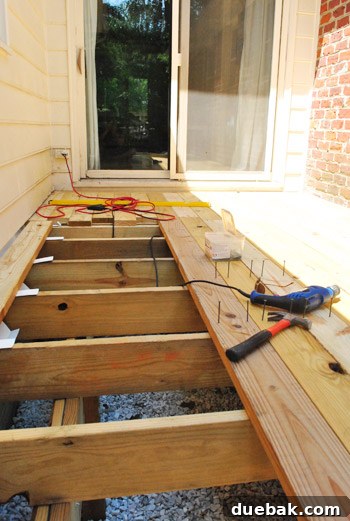

Rather than painstakingly pre-drilling every hole, I adopted a more efficient approach. I would use a hammer to gently tap each screw just enough to secure it in the wood. A level served as an invaluable straight edge, ensuring perfect alignment for each row of screws. Once the screws were lightly set, I’d follow up with my power drill to drive them fully into place. This method significantly sped up the process compared to individual pre-drilling, without sacrificing the desired neat, aligned finish.

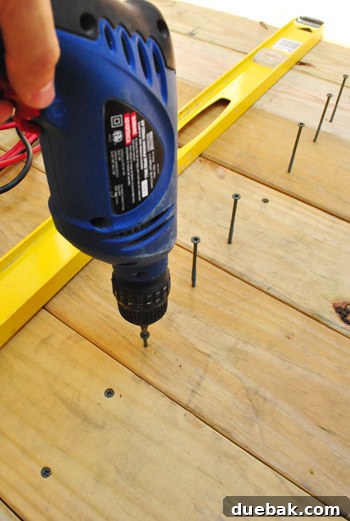

Drilling, however, wasn’t without its minor frustrations. The standard-top screws supplied by 84 Lumber had a tendency to slip and strip more often than I would have liked. Many online resources and fellow DIYers advocate for star-shaped bit screws, which offer superior grip and minimize cam-out. While I certainly would have preferred those, I pressed on with the materials at hand, adapting my technique to make the most of what I had.

Working with Warped Boards and Weather Challenges

Summer had returned with a vengeance on this day, making direct sun exposure almost unbearable. Consequently, I strategically focused my efforts on the shaded areas of the deck. This meant continuing to add new boards even though some from the previous day still awaited their full complement of screws. Crucially, as I laid each board, I carefully checked its “cupping” direction. This often-overlooked detail is vital for the long-term integrity and appearance of a deck, as proper cupping orientation can significantly impact drainage and prevent board deformation (you can learn more about this here).

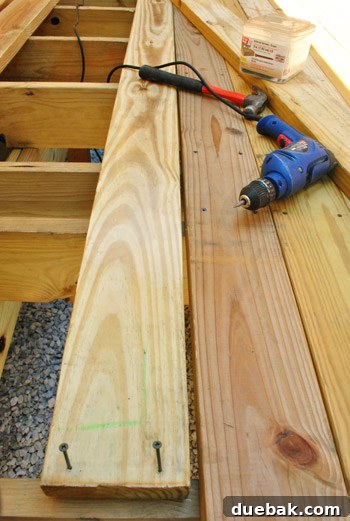

Another significant challenge that impeded lightning-fast progress was dealing with warped boards. When working with 10-foot lengths, it is exceedingly rare to find a perfectly straight piece of lumber. Often, after securing one end of a board, the other would present a noticeable gap, bowing away from its intended position.

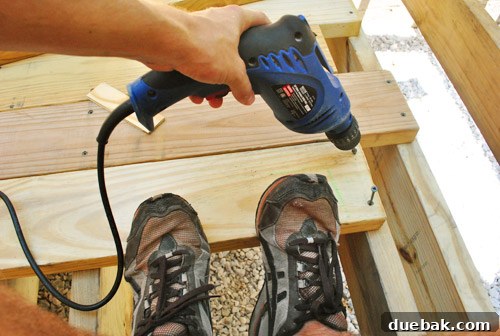

To overcome these stubborn gaps, I employed a physical technique requiring considerable effort. I would first set screws into the deck board just far enough to hold it in place without piercing through to the other side. Then, using my body weight and leverage, I would forcibly push the warped board against its neighbor, closing the gap. Sometimes this process was relatively straightforward, requiring only moderate pressure. Other times, it demanded every ounce of my strength and determination to coax the board into submission.

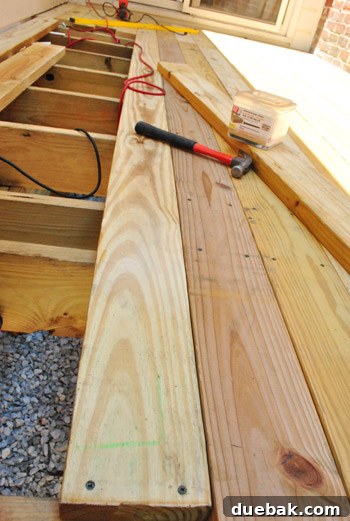

Once the board was precisely where it needed to be, held firmly in place by my body, I would swiftly use my free hand to drive in the remaining screws, securely fastening it to the joists below. This method, though physically demanding, proved effective in achieving a tight, uniform deck surface despite the inherent imperfections of the lumber.

A Surprise Inspector: Clara’s Deck Debut

I was nearing completion of the middle section and about to trim the side of my frame piece for a perfect fit when it was time to pack up for an important appointment. As I asked Sherry to snap a picture of my incredibly sweaty self, our daughter Clara, brimming with curiosity, pushed past Sherry for her inaugural trip onto what she excitedly dubbed “the pretty, pretty deck.”

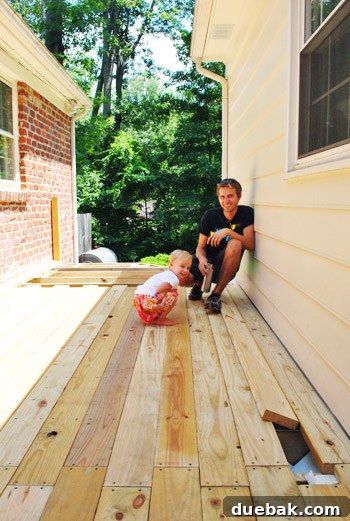

Initially, it seemed she simply wanted a closer look at my progress, offering her two-year-old seal of approval.

… and indeed, she appeared to approve of the craftsmanship.

However, it quickly became evident that her primary objective was to “mooch” some of my water, a refreshing reward after a day under the hot Virginia sun.

Following her hydrating interlude, she cast a discerning eye over the remaining unfinished area, perhaps playfully assuming the role of the chief inspector.

Eventually, Clara headed back inside, allowing Sherry to capture the intended photo. While the image doesn’t fully convey the sheer level of perspiration (and perhaps that’s a good thing for our readers!), I can confirm I had literally soaked through every layer of clothing: shirt, shorts, boxers, and even my leather belt was damp. Sherry, predictably amused, couldn’t fathom how a belt could get wet (“Wait, so you sweated through your boxers, through your shorts, and through your belt?!”). My manly (and slightly exaggerated) reply: “I’m a man! Doing manly things on a hot day!”

Anticipating the Finish Line: A Deck Transformed

Despite the physical demands and minor setbacks, every ounce of effort has been unequivocally worth it. We are particularly enamored with the unique zippered seams; we anticipate that once the pressure-treated wood fully contracts and we apply a protective stain, this distinctive pattern will become even more pronounced and captivating, mirroring the stunning inspiration image we initially shared. Looking ahead, I estimate perhaps one more full day of dedicated deck board installation, primarily for completing the remaining screw placements in the middle sections of the boards. Following this, we can eagerly transition to the final, exciting phase: constructing the railings and stairs.

The finish line is now clearly in sight, a motivating prospect assuming favorable weather conditions. Although, having navigated construction through oppressive heat advisories and sudden thunderstorm warnings, the forecast holds far less sway over my determination. I hope I haven’t just tempted fate with that declaration, especially with hurricane season still upon us!
